How do I configure and install the Impact Course Reports LTI 1.3 in Blackboard Ultra?

You can configure and install the Impact Course Reports LTI 1.3 in Blackboard provided you have installed the 1.3 version of the Impact UEF LTI.

Notes:

  • Please submit a ticket by emailing [email protected] or clicking the Impact Support button on your Impact dashboard to obtain a unique application/client ID to configure the application.

How do I configure and install the Impact Course Reports LTI 1.3 in Blackboard Ultra?

1. Open Admin

In Blackboard, click the Admin link.

Open Admin

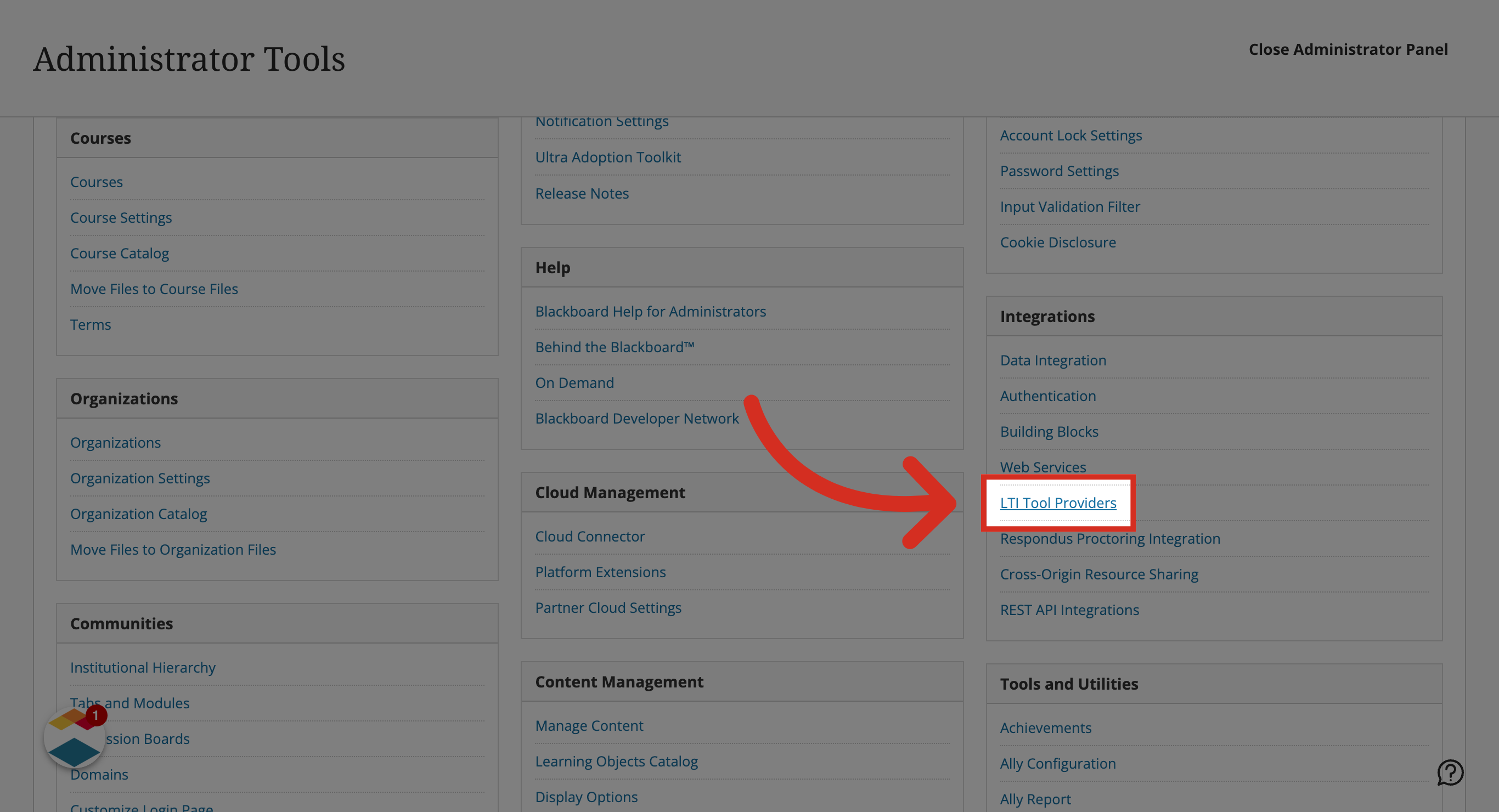

2. Open LTI Tool Providers

In the Integrations section, click the LTI Tool Providers link.

Open LTI Tool Providers

3. View LTI Provider Options

Locate the existing LTI Provider added for Impact UEF version 1.3 and click the drop-down button.

View LTI Provider Options

4. Manage Placements

Click the Manage Placements link.

Manage Placements

5. Create Placement

Click the Create Placement link.

Create Placement

6. Enter Placement Information

In the Placement Information, enter the Label that displays in the course.
Enter Placement Information

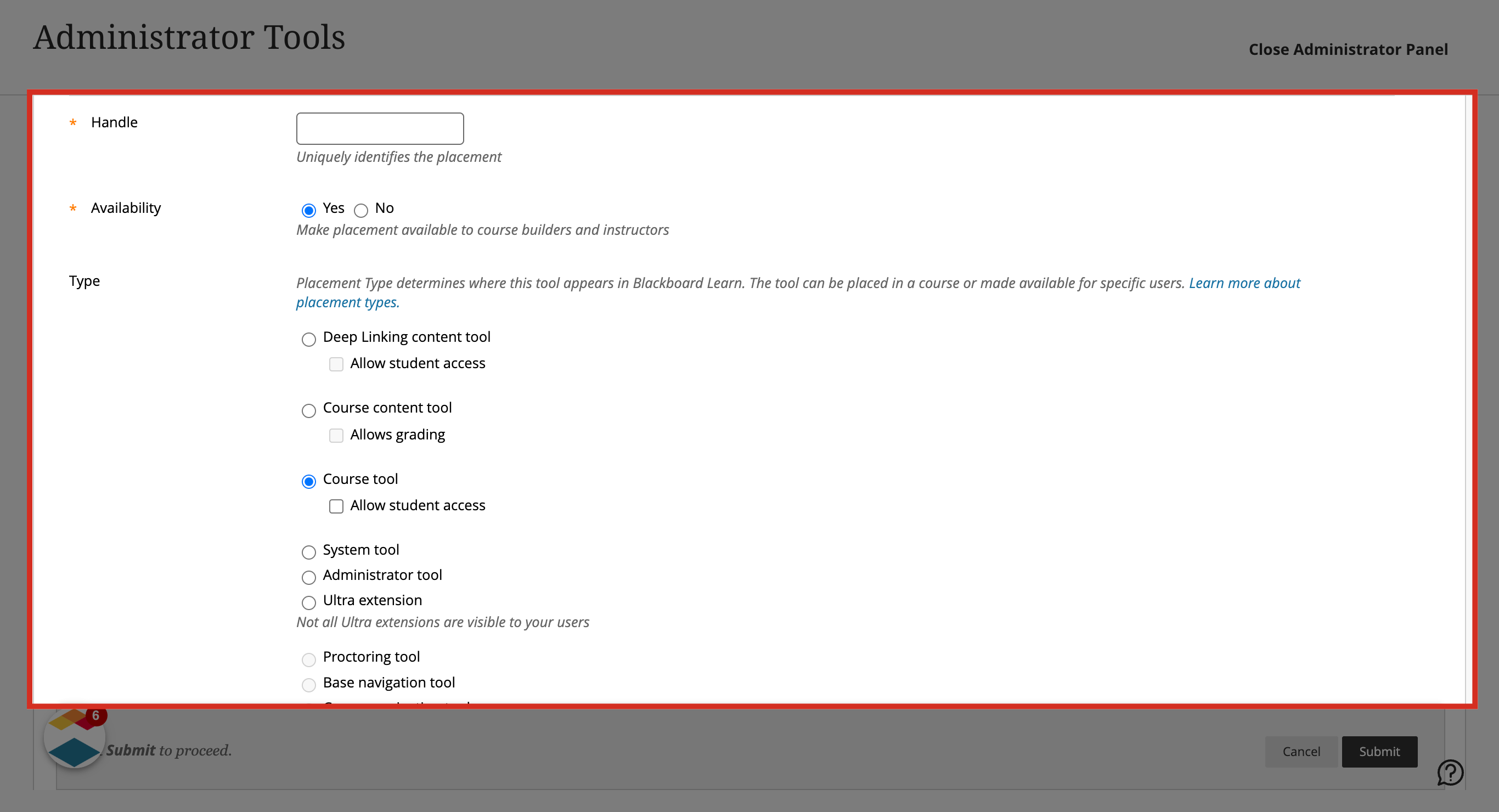

7. Enter Remaining Placement Information

Enter the remaining placement information:

  • Handle: Add a name

  • Availability: Yes

  • Type: Course tool

Enter Remaining Placement Information

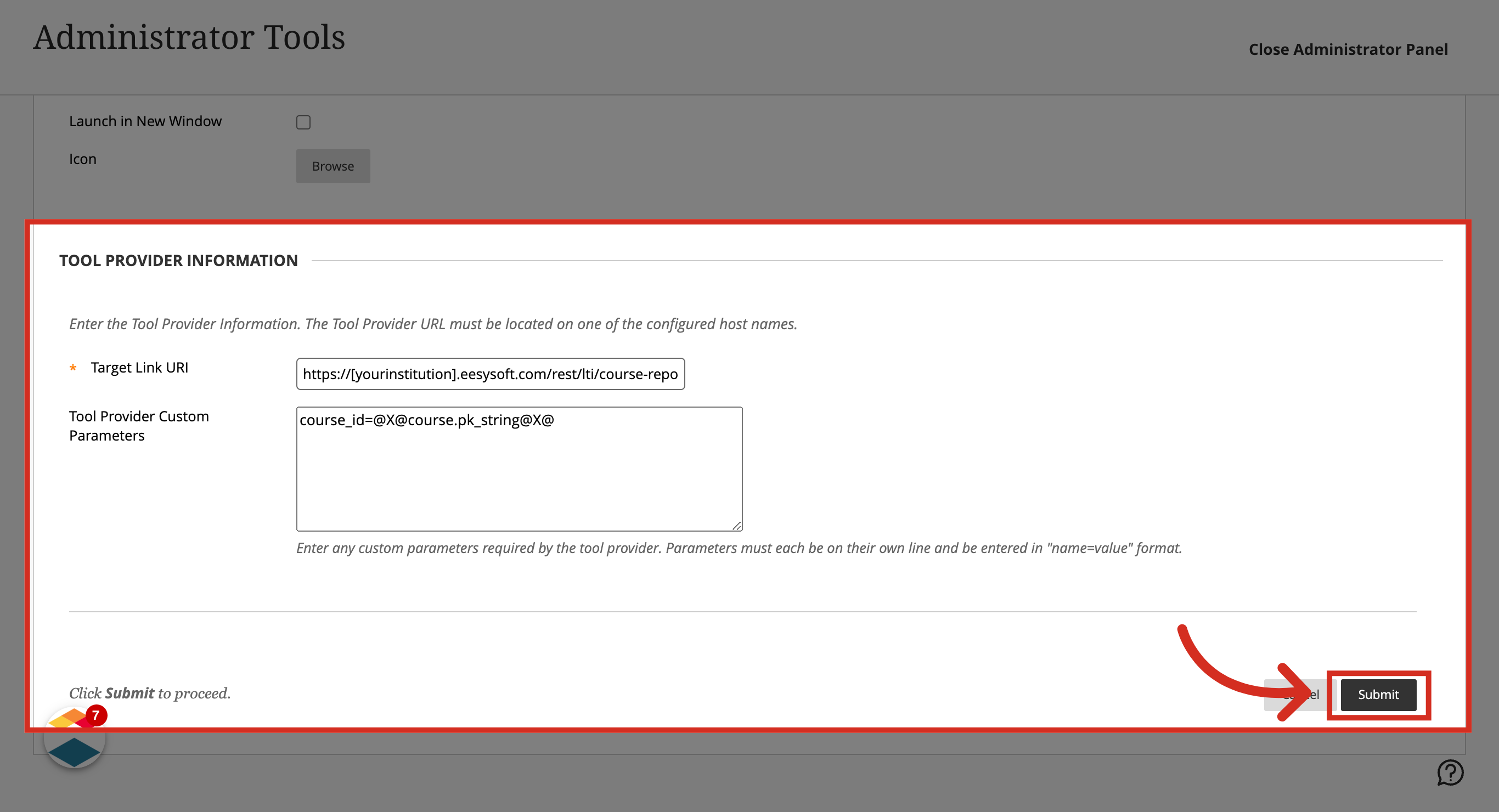

8. Enter Tool Provider Information

The Target Link URL needs to be your specific provider's URL.

The Tool Provider Custom Parameters needs to be set to course_id=@[email protected]_string@X@

Then click the Submit button.

Enter Tool Provider Information

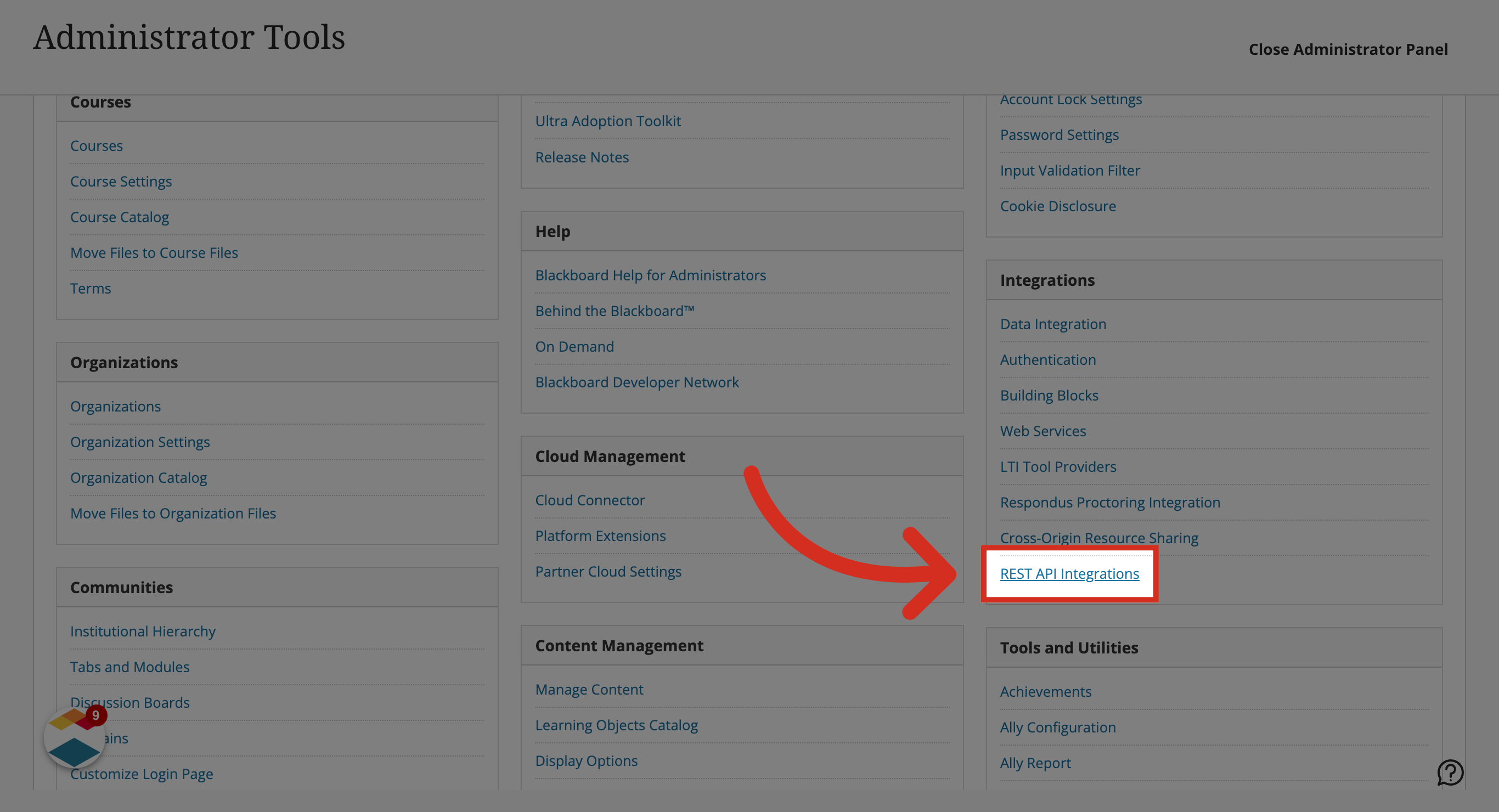

9. Open REST API Integrations

In the Admin Panel Integrations section, click the REST API Integrations link.

Open REST API Integrations

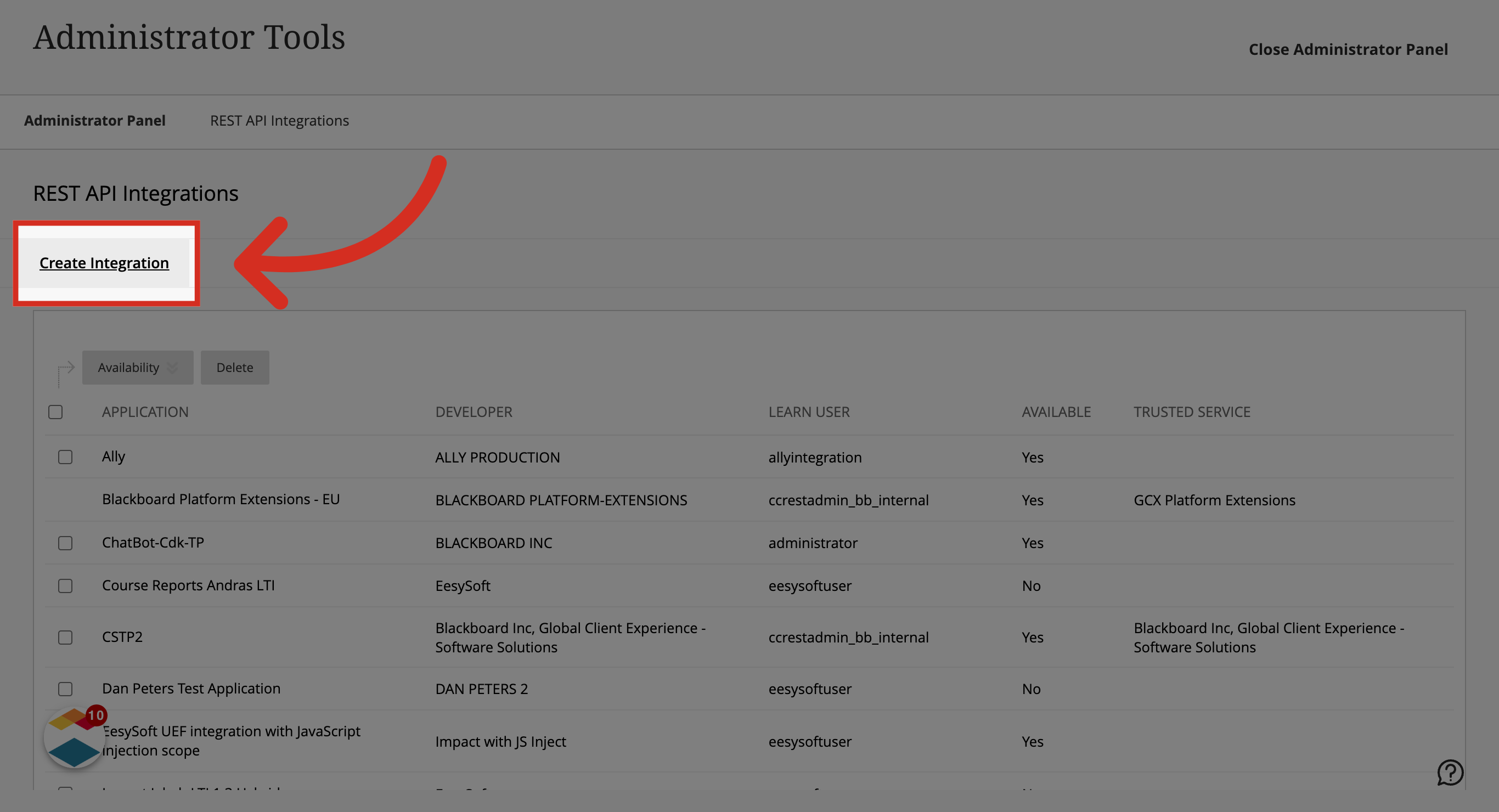

10. Create Integration

Click the Create Integration link.

Create Integration

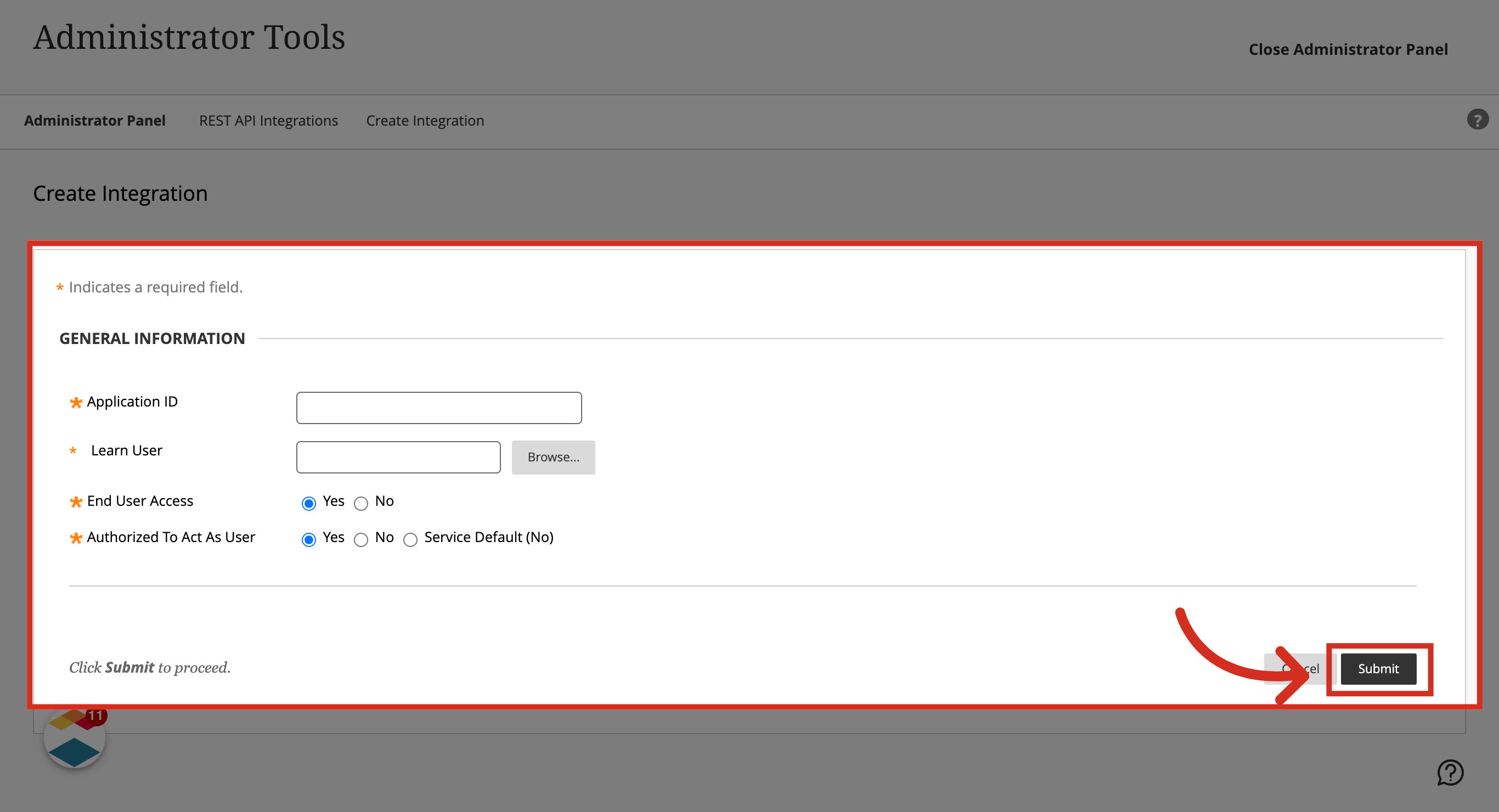

11. Enter Integration Information

Enter the following information for Integration Information:

  • Application ID: Please submit a ticket to [email protected] or through the Impact Support button on your Impact Dashboard to obtain a unique application/client ID to configure the application.

  • Learn User: should be a user with a minimum set of privileges

  • End User Access: Yes

  • Authorized to Act As User: Yes

Then click the Submit button.

Note: If you get an error when launching the LTI tool, as an admin, navigate to Course Settings, click Course Tools, and turn tool LTI On.

Enter Integration Information
